Climatization brackets / Speedy brackets

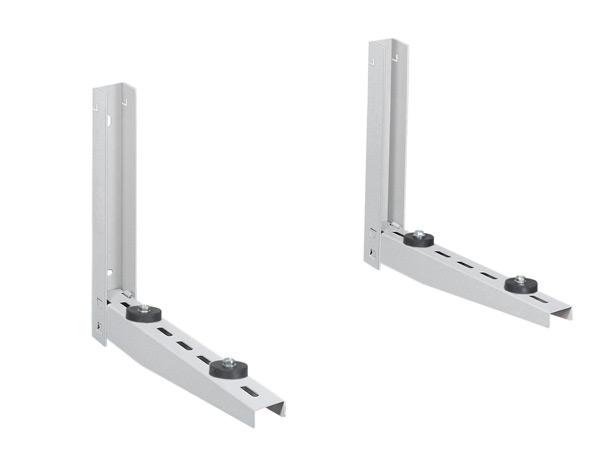

Speedy brackets

Available on request horizontal arm with 500 - 550 – 600mm length and vertical arm from 350 to 600mm.
Stainless Steel made on request.
With or without Mounting bar (vial on request)

Show variants

Specifications

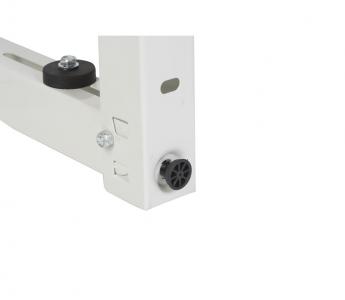

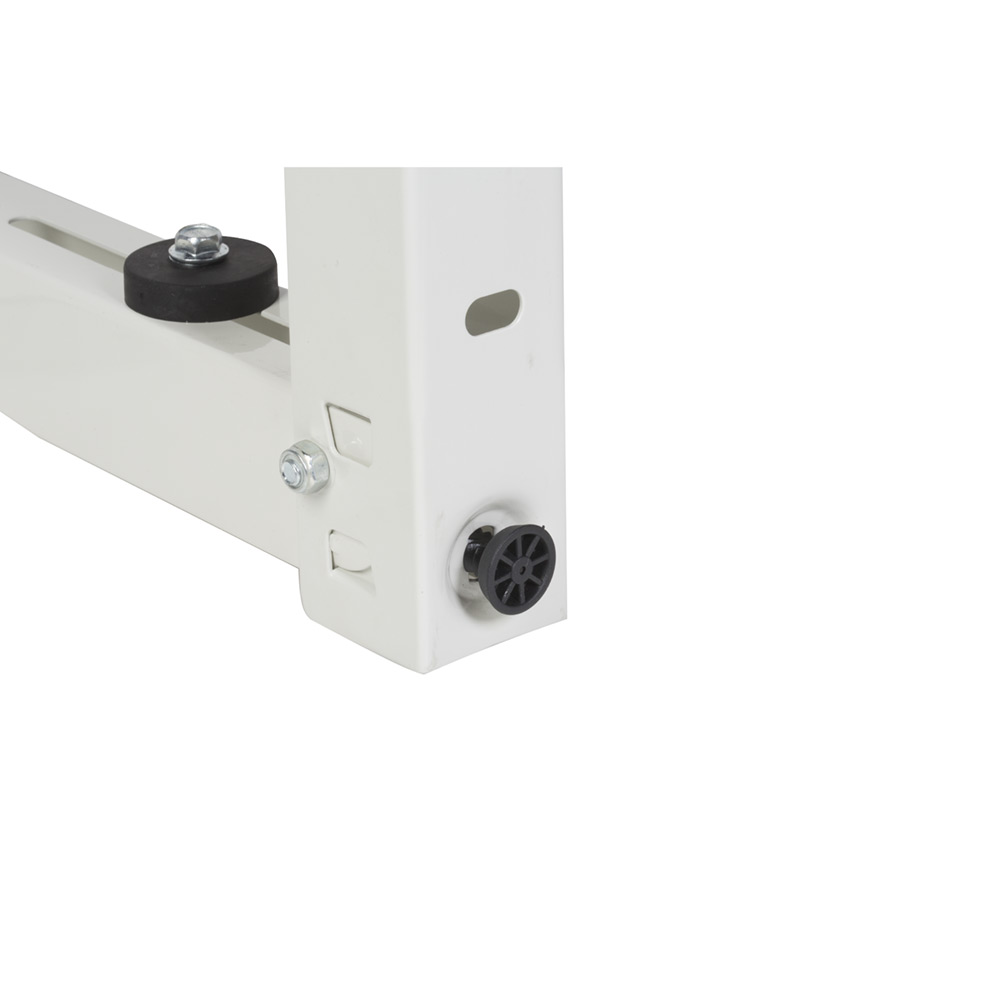

Levelling rear foot included for codes 12151/153 2.0 TCP on request for all other articles

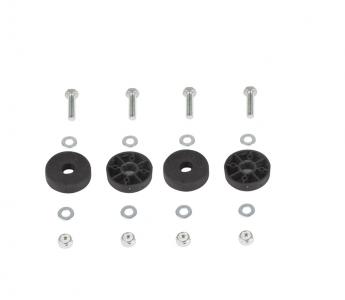

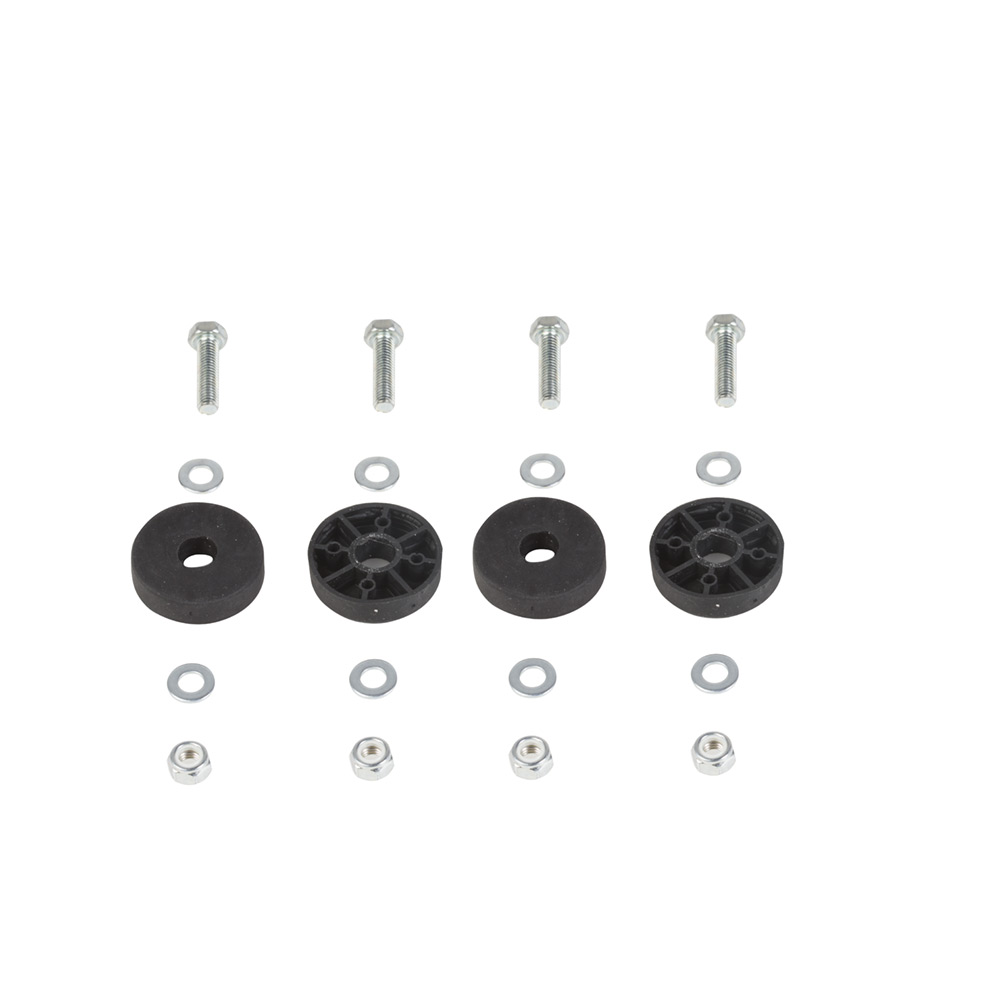

External unit fixing kit mod. Normal.

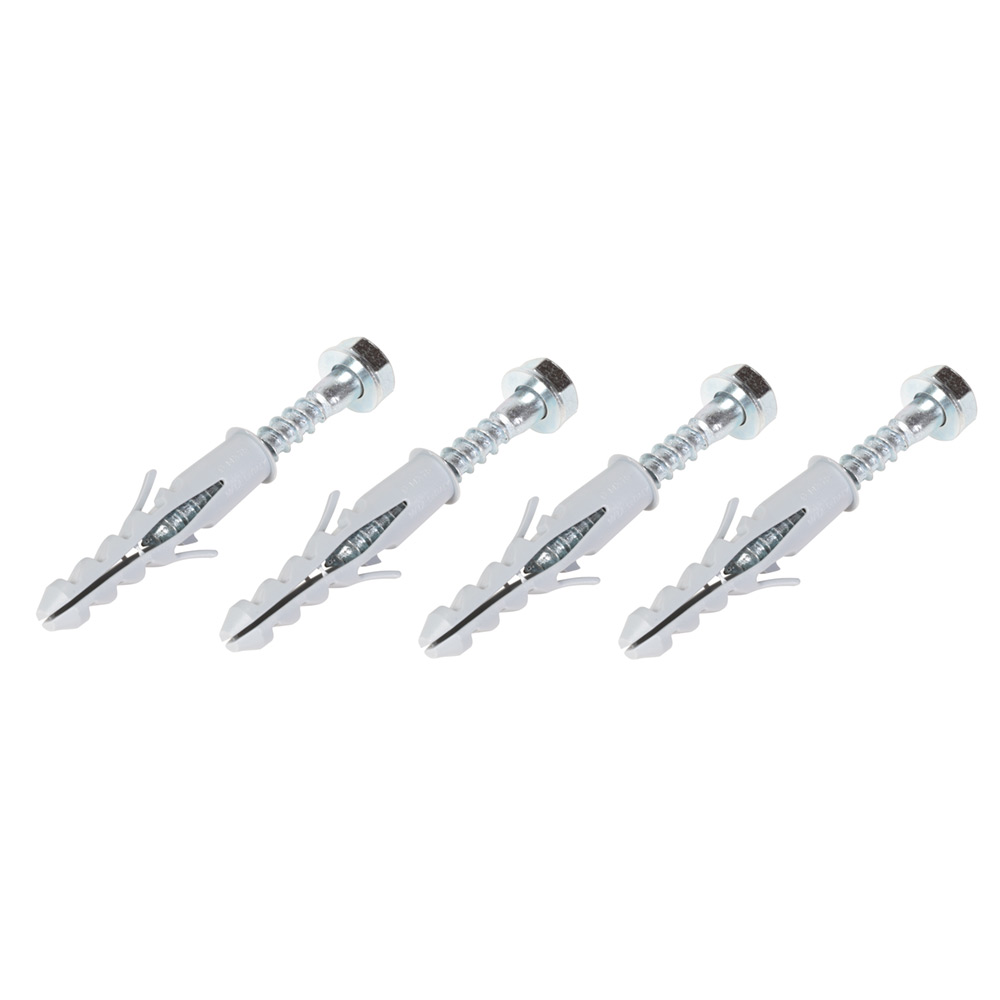

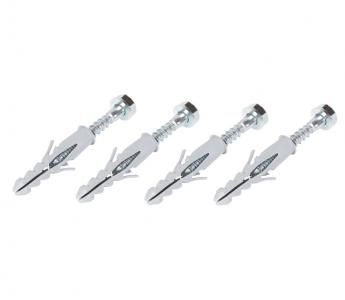

Fixing kit for wall bracket , diam. 8x70 or 10x70 (on request)

External unit fixing kit mod. Star

Art. code	Dimensions	Thickness	Version	Loading Capacity	€/Kit
12052 2.0	380x400	2 mm	Normal	120 kg	### €
12052A 2.0	410X400	2 mm	Normal	120 kg	### €
12052B 2.0	450x400	2 mm	Normal	120 kg	### €
12055 2.0	480x400	2 mm	Normal	120 kg	### €
12055A 2.0	500x400	2 mm	Normal	120 kg	### €
12055B 2.0	550x400	2 mm	Normal	120 kg	### €
12052 1.5	380x400	1,5 mm	Normal	95 kg	### €
12052A 1,5	410x400	1,5 mm	Normal	95 kg	### €
12052B 1,5	450x400	1,5 mm	Normal	95 kg	### €
12055 1.5	480x400	1,5 mm	Normal	95 kg	### €
12055A 1.5	500x400	1,5 mm	Normal	95 kg	### €
12055B 1.5	550x400	1,5 mm	Normal	95 kg	### €
